[alexxx24]

Уважаемые коллеги,кто в курсе? HAMMER H2 2005г.в, нужны точки подкл А/З . Спасибо!

[Vital999]

В хаммере всё просто кроме обхода иммо, надо замок разбирать.

[Хочу Все Знать]

Vital999
+1 точно!

[kola]

HUMMER

MODEL YEAR(S)
H2 2003 -2008
KEY T-HARNESS IMMOBILIZER
N/A N/A Has NEW PASSLOCK II Anti-Theft System, Requires Part #XK06 Module
PART COLOR LOCATION
12 VOLT CONSTANT RED (+) and RED/WHITE (+) @ IGNITION SWITCH HARNESS
STARTER YELLOW (+) @ IGNITION SWITCH HARNESS
STARTER 2 N/A
IGNITION 1 PINK (+) @ IGNITION SWITCH HARNESS
IGNITION 2 WHITE (+) @ IGNITION SWITCH HARNESS
IGNITION 3 N/A
ACCESSORY/HEATER BLOWER 1 ORANGE (+) @ IGNITION SWITCH HARNESS
ACCESSORY/HEATER BLOWER 2 BROWN (+) @ IGNITION SWITCH HARNESS
KEYSENSE N/A
PARKING LIGHTS ( - ) GRAY/BLACK (-) @ BCM. BROWN Plug, Pin B2, See NOTE *1
PARKING LIGHTS ( + ) BROWN (+) Left and BROWN/WHITE (+) Right, will require both! See NOTE *2 in DRIVERS KICK PANEL, Harness to Rear of Vehicle, See DIAGRAM
POWER LOCK LIGHT BLUE (TYPE B) @ BCM, PURPLE Plug, Pin B3, See NOTE *1
POWER UNLOCK WHITE (TYPE B) @ BCM, PURPLE Plug, Pin B2, See NOTE *1
DOOR TRIGGER See NOTE *3 See NOTE *3
DOMELIGHT SUPERVISION GRAY/BLACK (+) @ BCM, BLACK Plug, Pin E, See NOTE *1
TRUNK RELEASE N/A
SLIDING POWER DOOR N/A
HORN BLACK/YELLOW to BLACK (-) @ HORN Switch or BCM, GRAY Plug, Pin B9, See NOTE *1
TACH WHITE (1-6Volts AC) testing voltage @ PCM, GREEN Plug, Pin 10, See NOTE *4
WAIT TO START LIGHT N/A
BRAKE WHITE (+) @ Switch above BRAKE Pedal
FACTORY ALARM DISARM LIGHT GREEN (-) in DRIVERS DOOR at DOOR Module

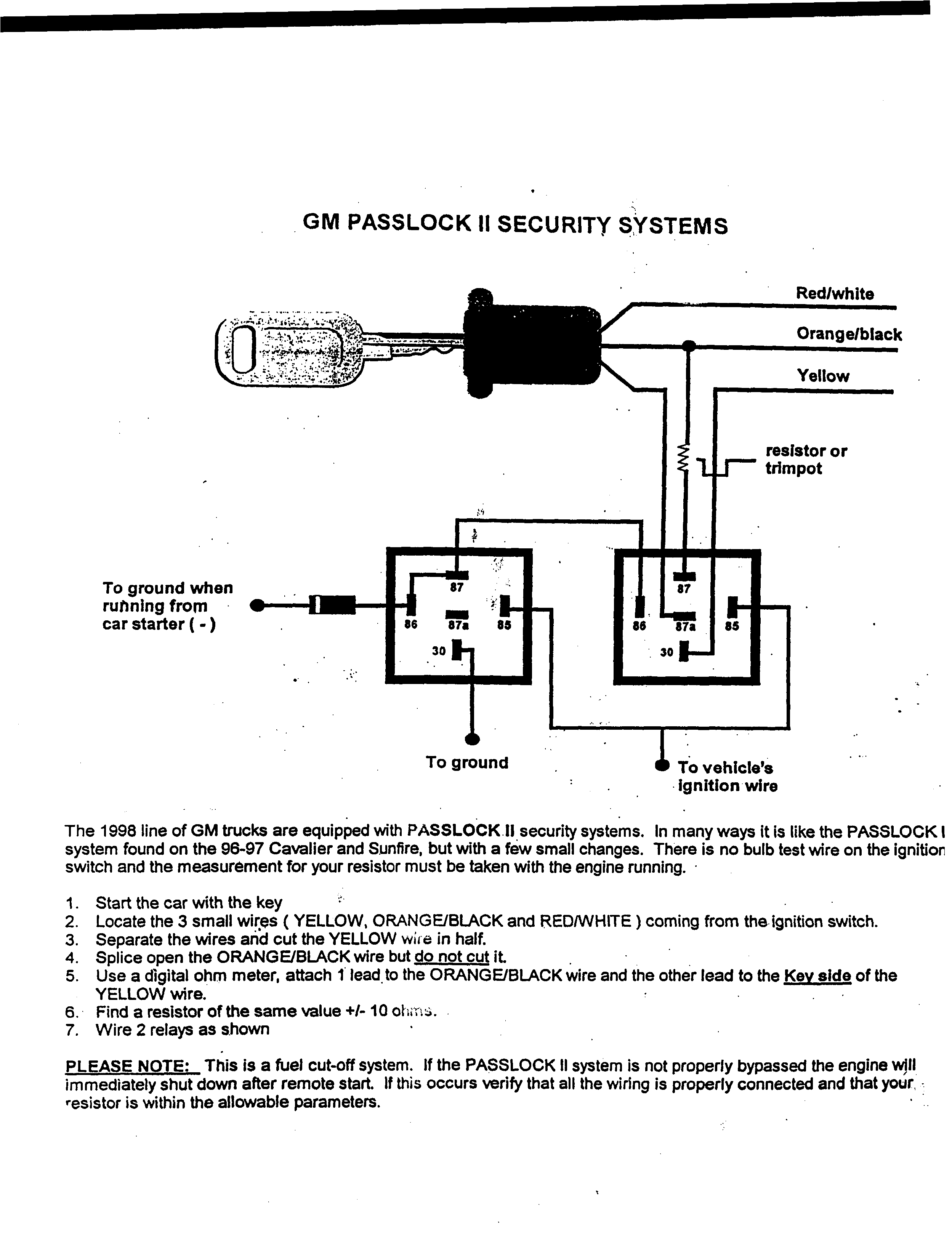

ANTI-THEFT GM'S New PASSLOCK II System, Requires XK06 Bypass Module
EXTRA INFORMATION
NOTE *1 The BCM is located behind the HEADLIGHT Switch. The BCM has 6-Plugs, with the PURPLE Plug on the Back of the Module. NOTE *2 This vehicle has 2 (+) Positive Parking Light wires, use both, requires 2 extra Relays Part 775 to connect See DIAGRAM NOTE *3 the DRIVERS DOOR is a GRAY/BLACK (-) at the DRIVERS DOOR module in the DRIVERS DOOR. The PASSENGER DOOR is a BLACK/WHITE (-) at the PASSENGERS DOOR module in the PASSENGERS DOOR. The DRIVERS REAR DOOR is a LIGHT BLUE/BLACK (-) Pin A3 and the PASSENGERS REAR DOOR is a LIGHT GREEN/BLACK (-) Pin A2, both are located at the BCM, PURPLE plug. When connecting to an ALARM SYSTEM use all 4 wires and DIODE ISOLATE, See DIAGRAM NOTE *4 The PCM is located under the Hood of the vehicle, on the Drivers side next to the Battery.

[kola]

Это поможет.
